| Place of Origin: | China |
| Certification: | CE |
| Model Number: | AZR9NE-F/B |
AZR9NE-F/B Rated residual action current0.03A,0.1A,0.3A IEC/EN 61009-1, IEC/EN 62423

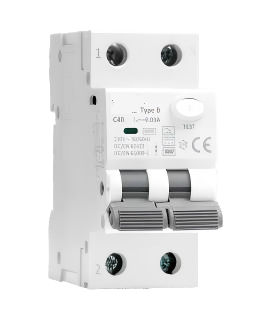

The AZR9NE-F/B Residual Current Operated Circuit Breaker is suitable for circuits with an AC frequency of 50/60Hz, rated voltage up to 240V, and rated current up to 40A. It is designed to detect AC leakage, pulsating DC leakage, smooth DC leakage, composite waveform leakage, and high-frequency leakage up to 1kHz.
The device can rapidly cut off faulty power within an extremely short time to protect personal safety and electrical equipment. It also serves as overload and short-circuit protection for circuits, as well as for infrequent switching operations under normal conditions.
This circuit breaker is suitable for various applications, including industrial, commercial, high-rise buildings, and residential use..
Equipped with AC leakage, pulsating DC leakage, smooth DC leakage, composite wave leakage, and high-frequency leakage protection devices up to 1kHz - with complete protection functions
The product has a leakage control handle opening function
Wiring capacity: (1-25) mm²
Compliant with environmental RoHS 2.0
