| Place of Origin: | China |

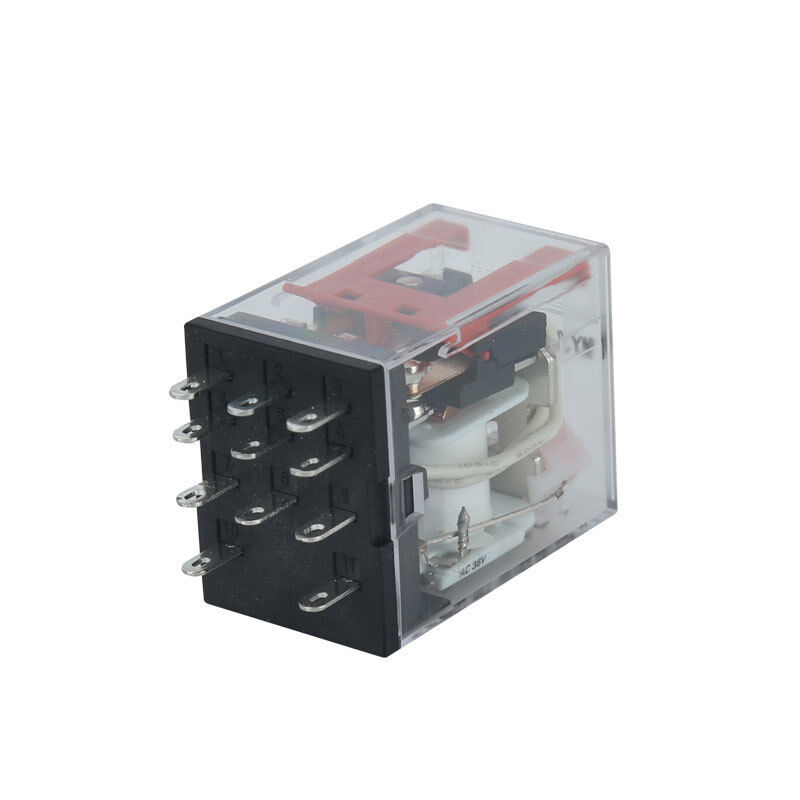

| Model Number: | AZ22BN-GS(MY3N-GS) |
Model Description
① Relay model
② Number of contact groups 2:2 groups 3:3 groups 4:4 groups
③ Is there an LED indicator light
Empty: No LED action indicator light
N: There is an LED action indicator light (red light for AC coil and green light for DC coil)
④ Relay type
GS: Low power plug-in electromagnetic relay
LY: High power plug-in electromagnetic relay
⑤ Coil voltage
Communication (AC): 6VAC, 12VAC, 24VAC, 36VAC, 48VAC, 110VAC, 220VAC, 380VAC
Direct Current (DC): 5VDC, 6VDC, 12VDC, 24VDC, 36VDC, 48VDC, 110VDC, 220VDC
Performance
| Contact form | 3 groups | |
| Contact resistance | Below 100m Ω | |
| Action Time | Below 20ms | |
| Reset time | Below 20ms | |
|
Maximum switching frequency
|
machine rated load
|
18000 times/hour 2400 times/hour |
| Insulation resistance | Above 1000M Ω | |
|
Withstand Voltage
|
Between the coil and the contact point Between polarized contacts Between the same polarity contacts |
AC2,000V 50/60Hz 1min AC2,000v 50/60Hz 1min AC1,000V 50/60Hz 1min |
|
Vibration
|
durability
|
10~55~ 10Hz, Double amplitude 1.0mm
|
|
malfunction
|
10~55~10Hz, Double amplitude 1.0mm
|
|
| Impact |
durability
|
1000m/s2 (approximately 100G)
|
|
malfunction
|
200m/s2 (approximately 20G) | |
|
Durability
|
durability
|
50000000 times (switching frequency 18000 times/hour)
|
| malfunction | 200000 times (switch frequency 2400 times/hour) | |
|
Environmental temperature for use
|
Standard type -55 ℃~+70 ℃ (non freezing, non condensing)
|
|
|
Equipped with action indicator light -40 ℃~+70 ℃ (without freezing or condensation)
|
||
| Environmental humidity for use |
5~85%RH
|
|
| Weight | About 35g | |
Switch position parameters
| Small power 3 groups | ||
|
Resistive load
|
inductive load (cosΦ=0.4,L/R=7ms) |
|
|
Contact composition
|
3c | |
| Contact mechanism | ||
| contact material | ||
|
Rated load
|
AC220V 3A DC24V 3A
|
AC220V 0.8A DC24V 1.5A |
| Rated current | 3A | |
| Maximum contact voltage |
AC250V,DC125V
|
|
| Maximum contact current |
3A
|
|
| Maximum switch capacity |
660VA 720W
|
176VA 36W |
