| Place of Origin: | China |

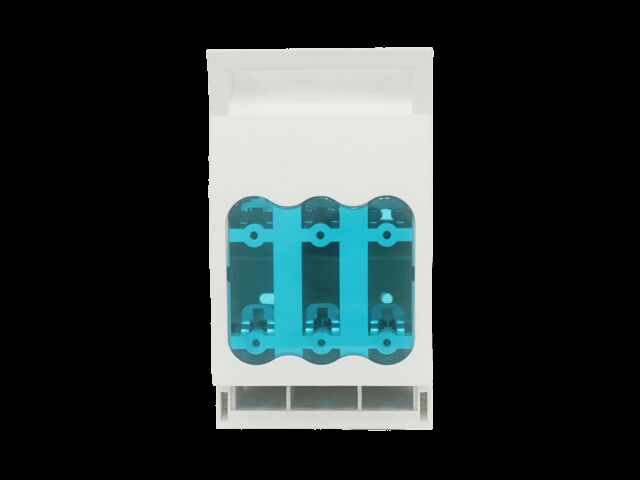

Product description:
This series of fuses is suitable for circuit protection with voltages below 1140V. The application feature is for general use, and the breaking range is full range. It can be installed in distribution boxes or used as a carrier in isolation switches, complying with GB/T13539-2015, IEC60262-2009 standards, and ROHS requirements.
Usage conditions:
altitude not exceeding 3000 meters, pollution level II, monthly average humidity not exceeding 90%.
|
Model
|
Rated voltage (V)
|
Rated current of fuse link(A)
|
Rated breaking current (KA) |
External dimensions of fuse components |
|||||
| A |
B (MAX) |
C (MAX) |
D | E | F | ||||
| AZ17 | AC1140 | 4,6,10,16,20,25,32,40,50,63,80,100,125 | 50 | 95 | 75 | 20 | 6 | 36 | 49 |
