| Place of Origin: | China |
| Model Number: | AZ1 |
Overview:

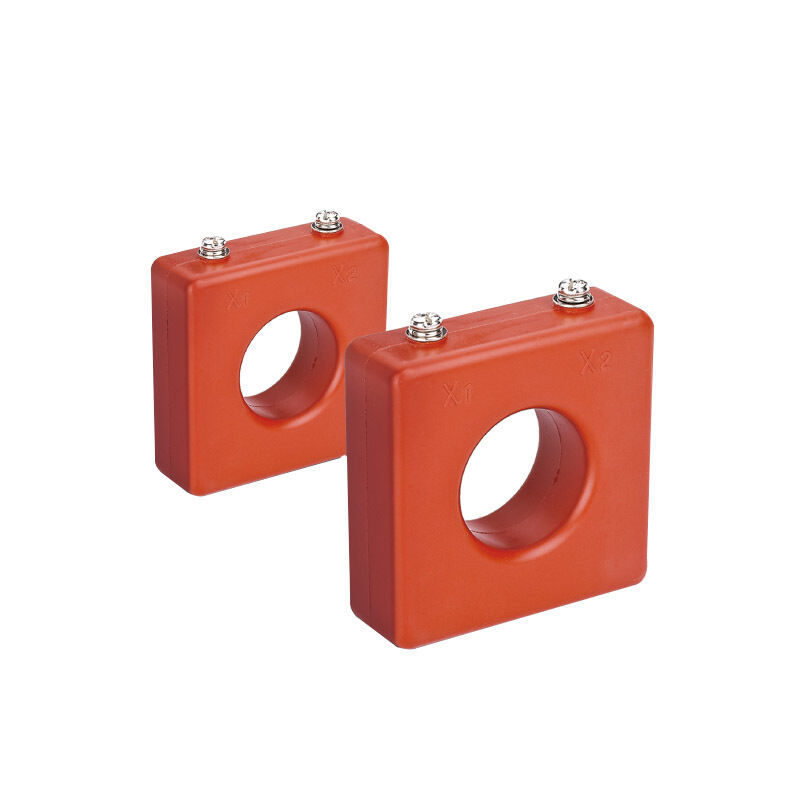

The AZ1 type current-limiting reactor is a dry-type reactor made by casting with unsaturated polyester resin, used to limit the inrush current when capacitors are connected.
Meet the standard:
●GB/T 1094.6-2011
●GB/T 19212.1-2016
Model and meaning:
| A | Z | 1 | - | 口 | / | 口 | |
| | | | | | | | | | | |||
| 1 | 2 | 3 | 4 | 5 | |||
| Number | Number Name | ||||||
| 1 | Current-limiting reactor |
||||||
| 2 | single-phase | ||||||
| 3 | Design Number | ||||||
| 4 | Equipped with capacitor capacity(kvar) | ||||||
| 5 | Rated voltage of the system(kv) | ||||||
Technical Specifications:
| Normal working conditions and installation conditions | |
| Installation site | Indoor |
| Ambient temperature | -25℃~+50°℃ |
| Relative humidity | ≤ 50% at 40 ° C; ≤ 90% at 20 ° C |
| Altitude | ≤1000m |
| Environmental conditions | No harmful gases and vapors, no conductive or explosive dust, no severe mechanical vibrations. |
| *Note: Each three-phase capacitor should be equipped with a reactor for each phase. When installing three phases in parallel, attention should be paid to the direction of the reactor wiring in and out. The wiring of the intermediate phase must be opposite to that of the two phases. If X1 at the beginning of the two phases is the incoming line, then X2 at the end of the intermediate phase is the incoming line. The center distance between reactors shall not be less than 42mm. | |
Appearance and installation dimensions:
| Dimensions and Structure | Product Model | Capacity of the provided capacitor (kvar) |
Rated voltage(V)
|
Rated current(A) | Current limiting multiple(In) | Dimensions WxDx H(mm) | Installation size(mm) |
| AZ1-12 | 12 | 380 | 22.5 | ≥50 | 90x32x90 | 68 | |
| AZ1-14 | 14 | 380 | 26 | ≥50 | 90x32x90 | 68 | |
| AZ1-15 | 15 | 380 | 28 | ≥50 | 90x32x90 | 68 | |
| AZ1-16 | 16 | 380 | 30 | ≥50 | 90x32x90 | 68 | |
| AZ1-18 | 18 | 380 | 33.6 | ≥50 | 90x32x90 | 68 | |
| AZ1-20 | 20 | 380 | 37.5 | ≥50 | 110x48x110 | 68 | |
| AZ1-25 | 25 | 380 | 47 | ≥50 | 110x48x110 | 82 | |
| AZ1-30 | 30 | 380 | 56 | ≥50 | 110x48x110 | 82 |
